Thru-the-Wall Air Conditioners Explained: Your Complete Guide to Through-the-Wall AC Units
Wed May 13 2026
- Air Conditioning
Thru-the-wall air conditioners (also called through-the-wall ACs and Wallfit ACs) offer a permanent, efficient cooling solution ideal for apartments, condos, hotels, and homes without suitable windows. Unlike portable or standard window units, these units install directly into an exterior wall, providing a sleek look and reliable performance.
If you're considering a thru-the-wall air conditioner for new construction, a retrofit, or replacing an old unit, understanding the two main types will help you choose the right one and avoid costly mistakes.
The Two Main Types of Thru-the-Wall Air Conditioners
1. New Installation Units (Slide-Out Chassis with Sleeve)
These units suit situations where no air conditioner exists yet. They feature a slide-out chassis (the working "guts" of the unit) and come with a dedicated wall sleeve.
Installation Process:

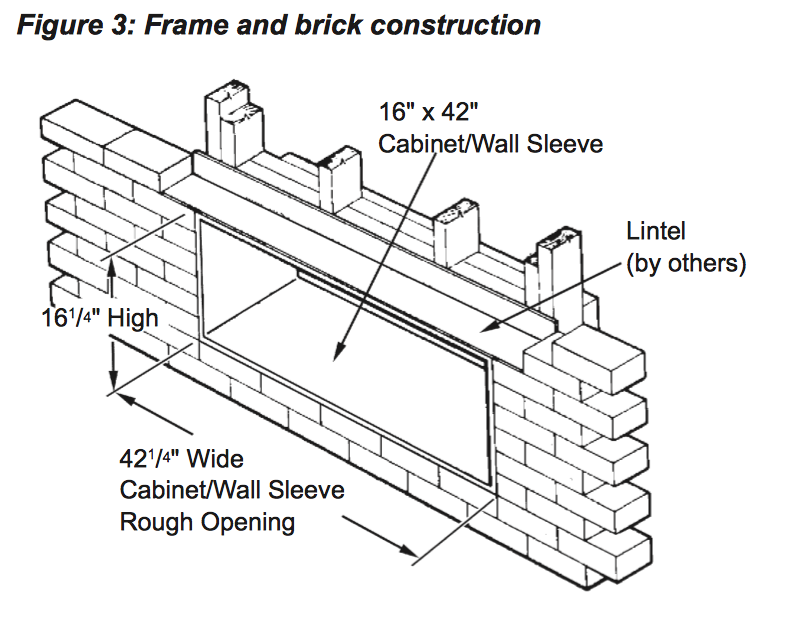

- Cut a hole in the wall about ¼ inch larger than the sleeve.
- Secure the sleeve into wall studs for stability.
- Slide the chassis into the sleeve for easy access during maintenance or repairs.

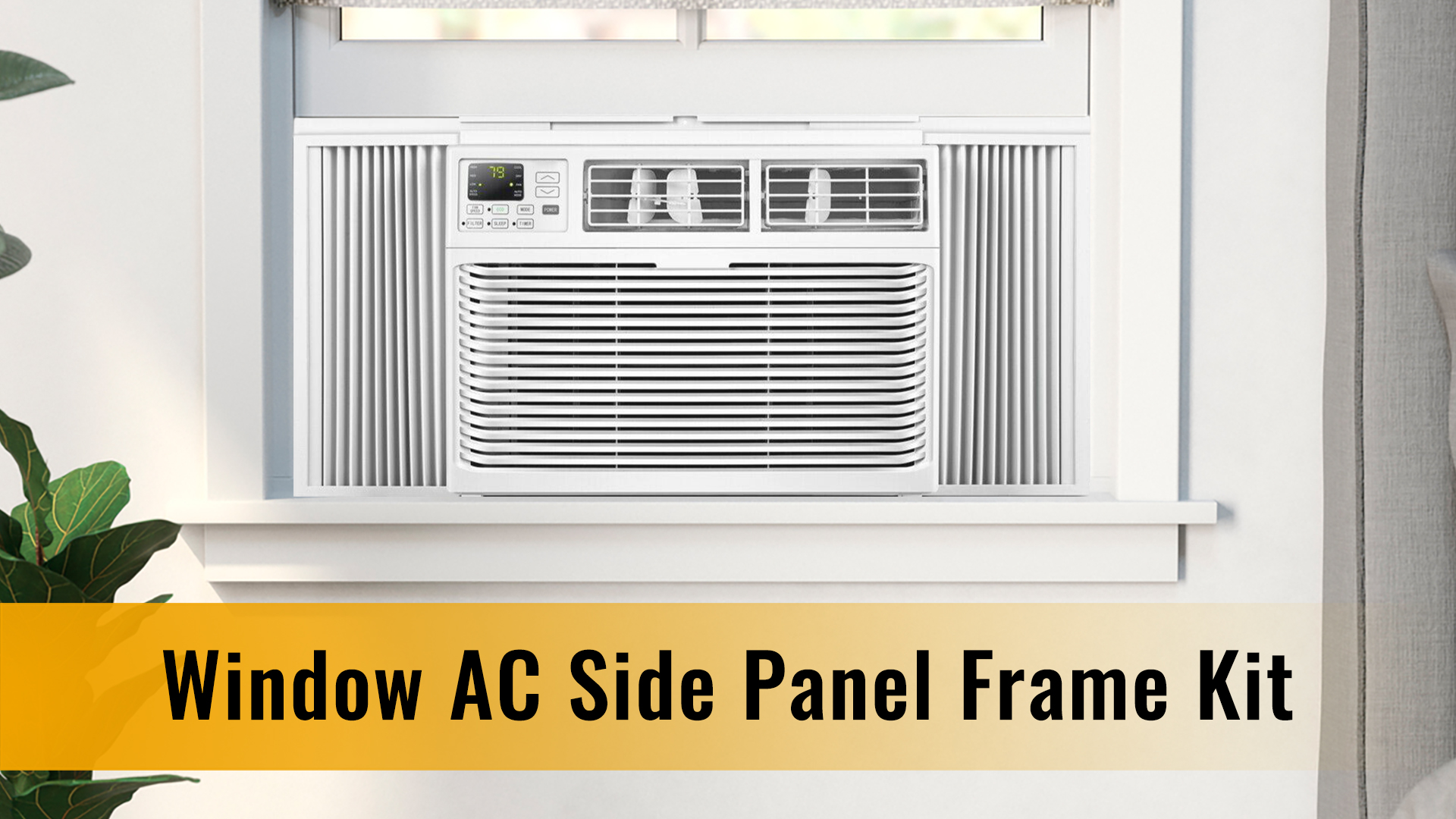

These models typically include side vents for proper airflow and often work as dual-purpose units—you can also install them in double-hung windows using accordion side panels.
Key Benefit: The removable chassis makes servicing straightforward, and the sleeve provides a secure, insulated fit.
2. Replacement Units (Solid-Sided, Rear-Vented)
These specialty units replace existing thru-the-wall air conditioners without major wall modifications. They are slightly more expensive upfront but save significantly on installation costs.
Design Features:
- Solid sides (no side vents).
- Rear-vented for exhaust.
- Smaller dimensions (typically under 26" wide and 16" tall) to fit standard old sleeves.
- Include a trim kit to cover gaps between the unit and the existing sleeve.
Why They Matter: Standard new-installation units with side vents often don't fit properly into older sleeves. Blocked side vents restrict airflow, causing overheating, compressor damage, and voided warranties. Rear-vented replacement units ensure proper breathing and reliable operation.
Key Differences at a Glance
| Feature | New Installation Unit | Replacement Unit |
|---|---|---|
| Best For | New holes / first-time installs | Replacing existing wall ACs |
| Venting | Side vents | Rear-vented |
| Sleeve Included | Yes | No (fits existing) |
| Installation Cost | Higher (requires cutting hole) | Lower |
| Window Compatible | Often yes (with accordion panels) | No |
| Size | Standard full size | Often smaller with trim kit |
Benefits of Thru-the-Wall Air Conditioners
- Space-Saving — No window blockage; frees up floor space.
- Energy Efficient — Better sealing than window units reduces air leaks.
- Quiet Operation — The wall installation dampens noise.
- Aesthetic Appeal — Sleek, built-in look.
- Durable & Permanent — Ideal for property managers and long-term installations.
Installation Tips and Considerations

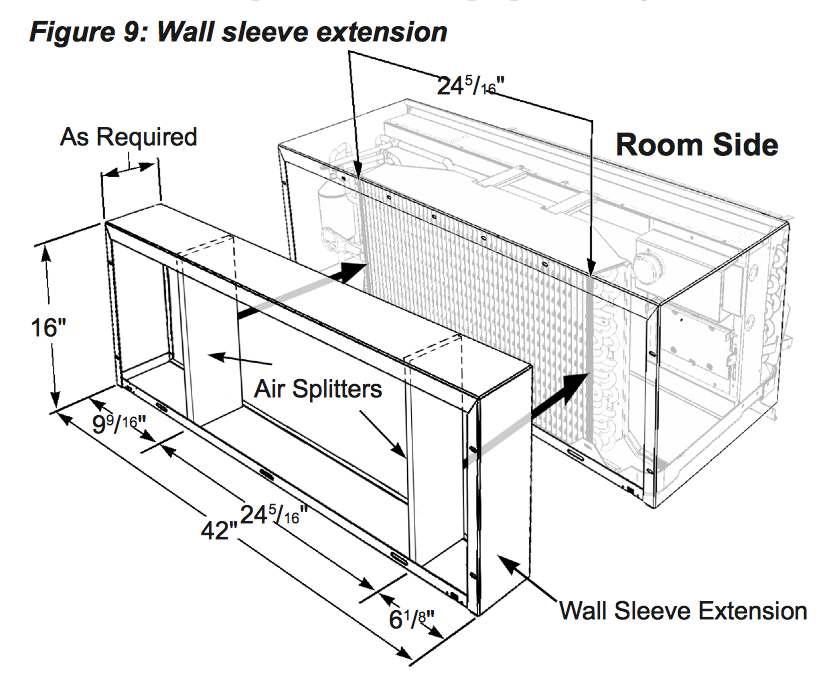

- Wall Thickness — Ensure compatibility with your wall depth (most sleeves handle up to 14-15 inches).
- Electrical Requirements — Check voltage (115V or 230V) and dedicated circuit needs.
- Professional Help — Cutting into walls requires proper framing, insulation, and sealing to prevent moisture issues.
- Sleeve Condition — For replacements, inspect the existing sleeve for rust or damage.
Common Questions About Thru-the-Wall ACs
Can I put a regular window AC into a wall sleeve? Generally no. Side vents get blocked, leading to poor performance and potential failure.
How long do they last? With proper maintenance, 10–15+ years.
Are they more efficient than window units? Yes, due to tighter sealing and reduced air infiltration.
Choosing the Right Thru-the-Wall Air Conditioner
Consider room size (match BTU rating to square footage), energy efficiency (look for high EER ratings), and features like programmable thermostats or remote control. Popular brands include Friedrich, GE, and Frigidaire for reliable wall units.
Whether you're a homeowner in Irvine, CA, a property manager, or shopping nationwide, selecting the correct type prevents headaches and ensures years of cool comfort.
Need help finding the perfect thru-the-wall air conditioner? Contact specialists like Feder’s Distributors for expert advice and nationwide shipping options.
Originally inspired by industry insights on proper thru-the-wall AC selection and installation.
Ready to upgrade your cooling? Explore high-quality options and make the smart choice for efficient, long-lasting comfort.
